How much does pallet rack in Miami cost?

Price depends on pallet positions, height, beam capacity, decking, freight and installation. Send pallet size, the heaviest load per level, usable clear height and building size for a free CAD layout and an itemized quote. For long-load or case storage, include bundle or carton dimensions and weights too.

How much weight can pallet rack hold?

There is no single weight rating for pallet rack. Beam capacity is per pair, per level; frame capacity depends on height and beam spacing. We size beams and frames from your heaviest pallet and total level load, include carts, rollers or rails where needed, and put capacities on load plaques.

What type of pallet rack do I need?

Selective teardrop rack is the starting point for mixed SKUs and direct access. Pushback stores two to six pallets deep, last-in, first-out by SKU; pallet flow suits FIFO or dated stock, drive-in suits bulk quantities of few SKUs, cantilever holds long loads, and carton flow serves case picking. We compare the fit against your inventory before drawing rows.

What size pallet rack do I need?

For standard 48-inch-deep pallets, 42-inch-deep uprights are the usual starting point. Common beam lengths are 96 inches for two 40-inch pallets, 108 inches, and 144 inches for three pallets. Measure the real load, including overhang; rack height follows usable clear height and your forklift lift height.

Can I add on to my existing pallet rack?

Usually, if the connection matches and the existing frames have enough capacity. Teardrop is not universal across manufacturers. Send a photo of the upright face, beam connector and any label so we can match new components before you order.

Pallet Rack in a South Florida warehouse

Pallet Rack Systems in Miami, FL

Name: Miami Warehouse Racking
Address: 1738 SW 57th Ave., Miami, FL, 33155, US
Telephone: (305) 930-7780
Price range: $$

Selective pallet rack is the workhorse in South Florida grocery, beverage and 3PL buildings. Every pallet sits one deep, so any forklift driver can pull any SKU without moving another load.

Most of the Miami calls we take start the same way: a distributor in Doral or Medley is out of floor space and wants more positions before the next import container lands. That is where a well-drawn selective layout pays off.

(305) 930-7780

Who Runs Selective Rack Around Miami

Food and beverage distributors along the Palmetto Expressway carry hundreds of SKUs at modest quantities. Mixed inventory like that needs full access, not depth.

Third-party logistics operators serving last-mile delivery in Miami Gardens and Pompano Beach rotate clients in and out. Selective rows are the easiest system to re-slot when a contract changes.

Freight forwarders near Miami International Airport stage export pallets bound for Latin America and the Caribbean. Those loads vary by shipment, so open faces beat lanes.

Fitting More Positions Into Your Clear Height

Older block and precast buildings in Hialeah, Medley and Opa-locka usually give you 18 to 24 feet clear, often with tight column spacing and a mezzanine in the way. We lay out frames around columns first, then pick beam levels that use the height you actually have.

Newer tilt-wall buildings in Airport West and Hialeah Gardens run 32 to 36 feet clear. That height usually supports one or two extra beam levels, as long as your trucks can reach them.

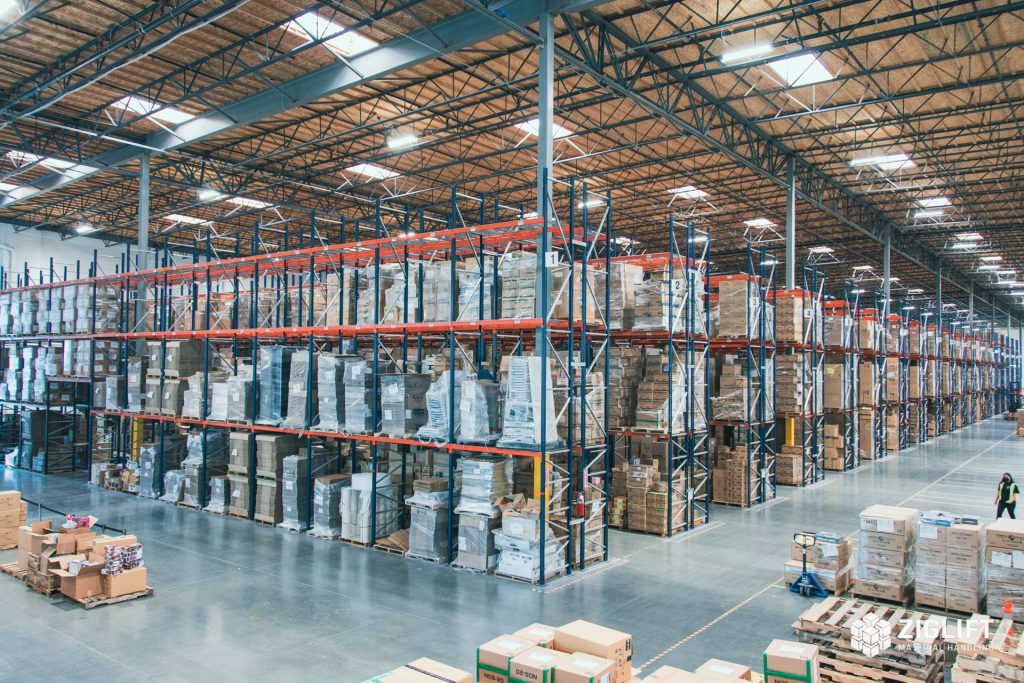

Rows of industrial pallet racks loaded with pallets in a Miami warehouse

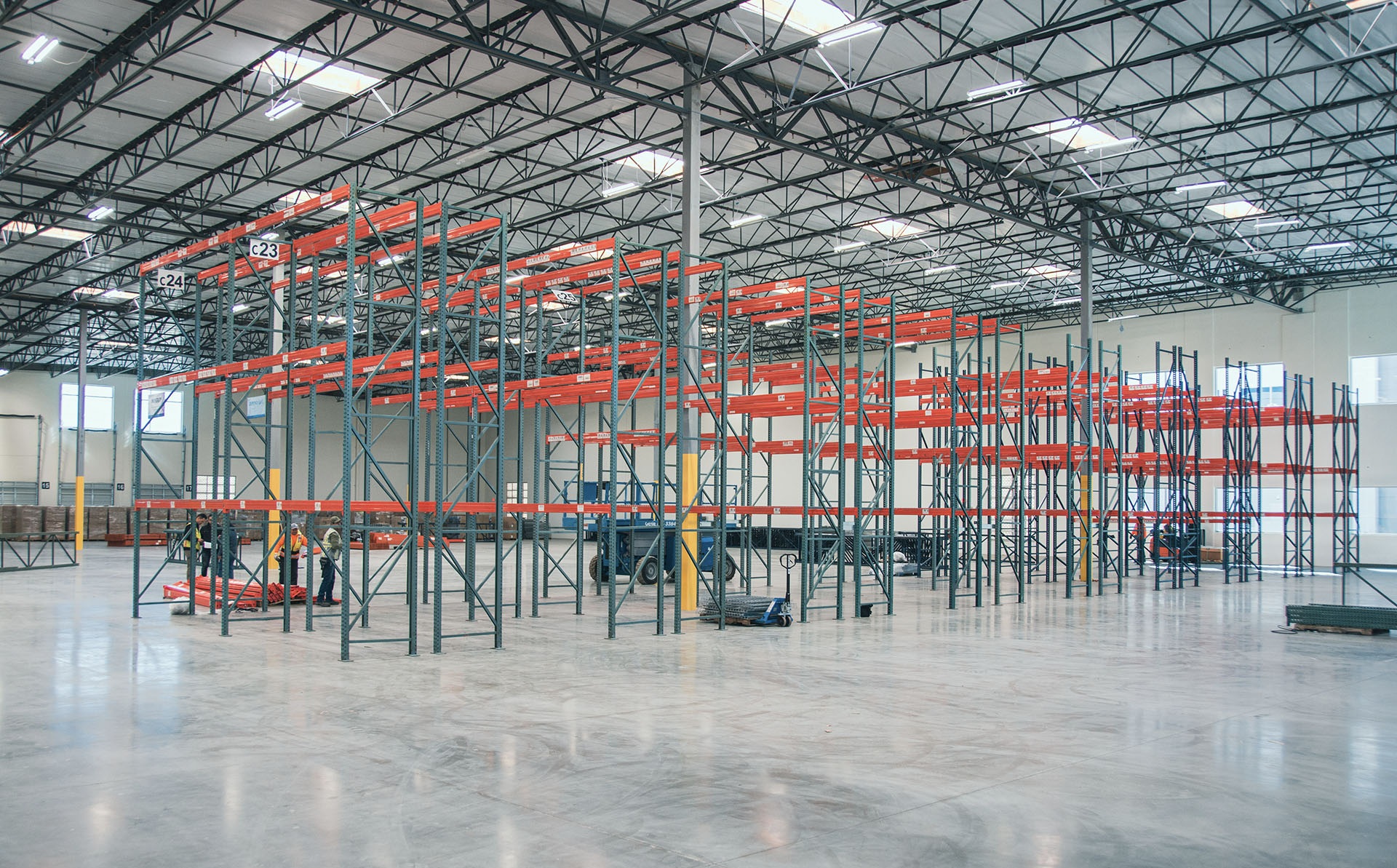

Selective pallet rack row fitted with wire decking on every level

Beams, Pallet Weights and Aisle Widths

We size beams to your heaviest real pallet, not a catalog average. Bottled water and canned goods can push a 48 x 40 pallet well past what a light beam pair should carry.

Aisle width follows your equipment. A counterbalanced truck, a reach truck and a narrow-aisle turret truck each change how many rows fit across the building.

Every beam pair carries a rated capacity, and the labels on each bay make the limit clear to every driver on the floor.

Adding Bays and Reconfiguring Later

Layouts change as the business changes. We keep your drawing on file, so moving beam levels or re-slotting rows for a new product mix starts from what you already have.

Adding bays to existing rack works too, provided we can match the uprights and beam connectors already on the floor. Our team handles the permit side for you.

Request a Pallet Rack Layout

Send pallet size, weight and clear height. Or call (305) 930-7780.

Free design consultation
CAD layout drawings
Itemized project quote
Install scheduling around your operation
